New! VisualAnalysis 9.0
Over 30 new features and improvements! Steel Warping Torsion Checks, Graphical Bracing Locations, CAD-Like Selection Box, Automatic Patterned Live Loads, Design Checks for Dynamic Response, and Improved Concrete Slab Design!
-
-
Friendly Structural Software Designed for Your Success
IES structural engineers create and support quality software for structural engineers. We develop products with advanced technology to help engineers work productively - including the first day our software is installed.
-
General Analysis & Design

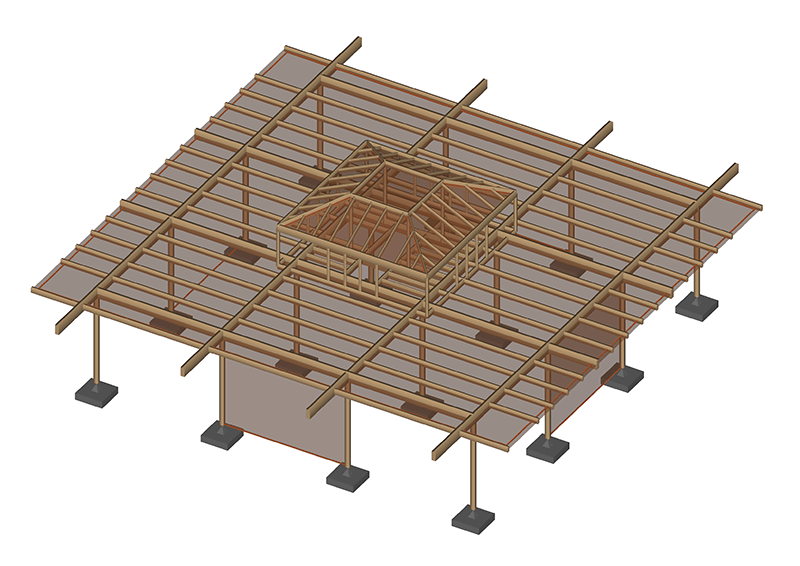

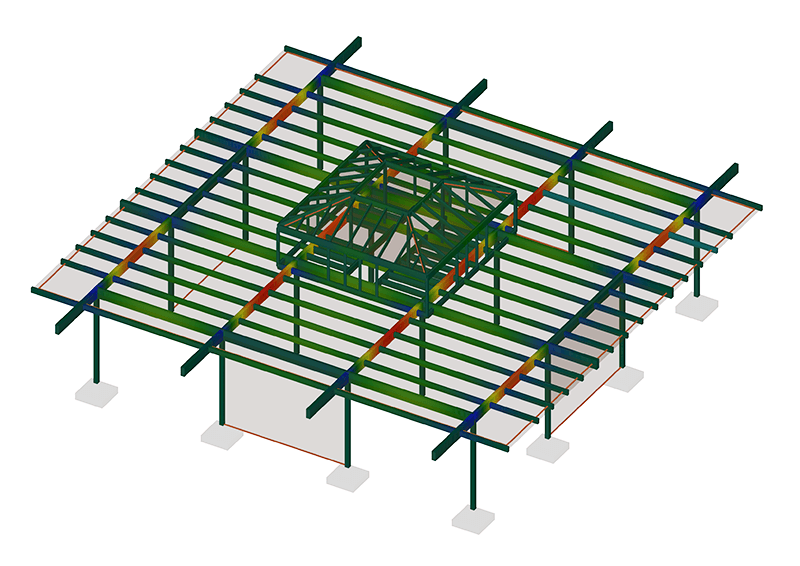

VisualAnalysis automates the design of steel, wood, concrete, aluminum, and cold-formed beams, columns, and framing for anything from simple members to complete, complex structures. A modern and intuitive user interface simplifies modeling, analysis, design, and reporting.
VisualAnalysis
Product Features
Download the Trial
Pricing
-

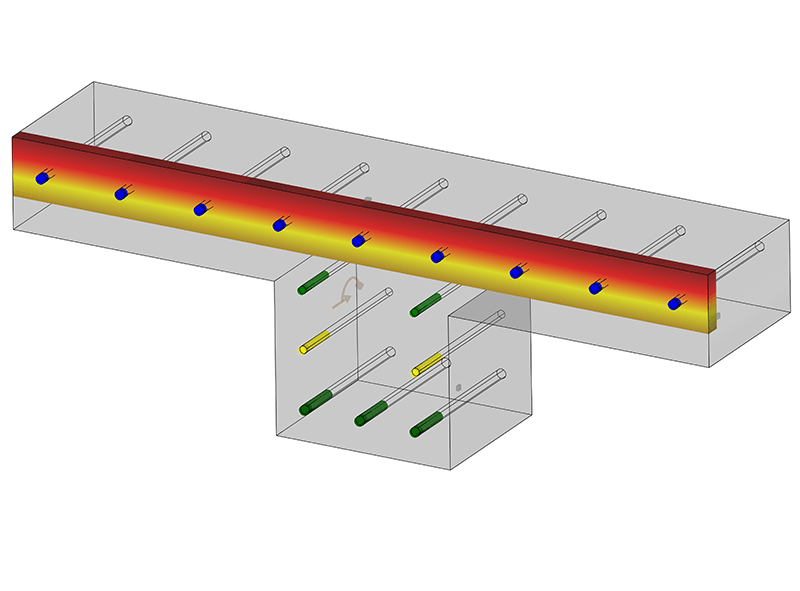

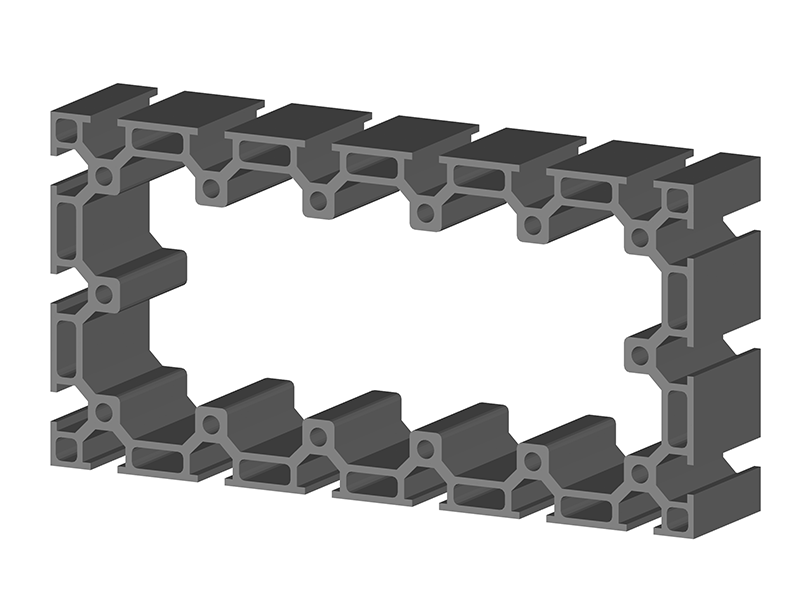

Section Properties & Stresses

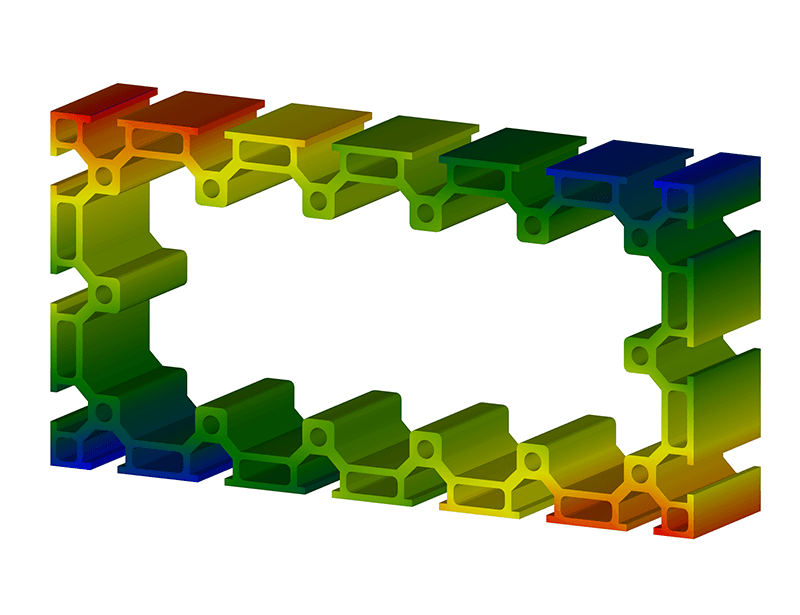

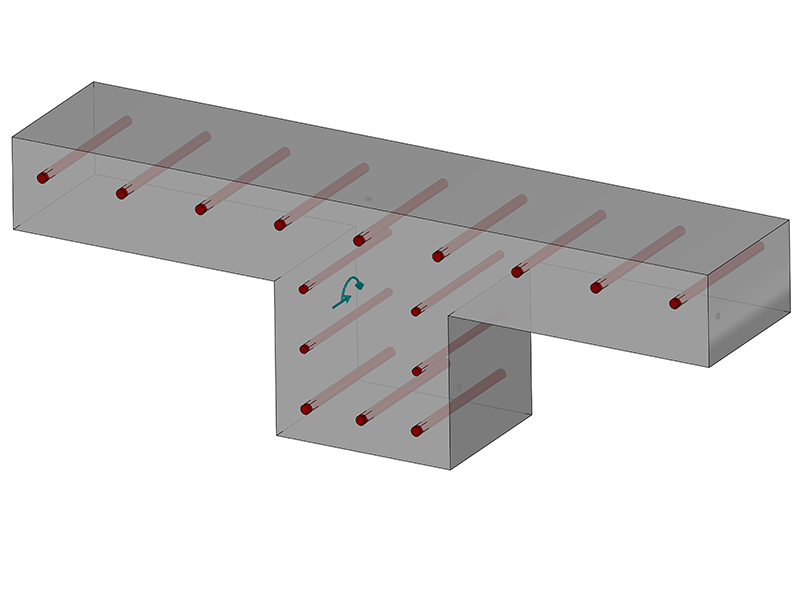

ShapeBuilder helps engineers work with custom member shapes calculating geometric properties including section properties and structural properties. ShapeBuilder performs advanced stress calculations including moments, shear, torsional effects, concrete section strength and cracked properties with user defined reinforcing steel.
ShapeBuilder
Product Features
Download the Trial
Pricing
-

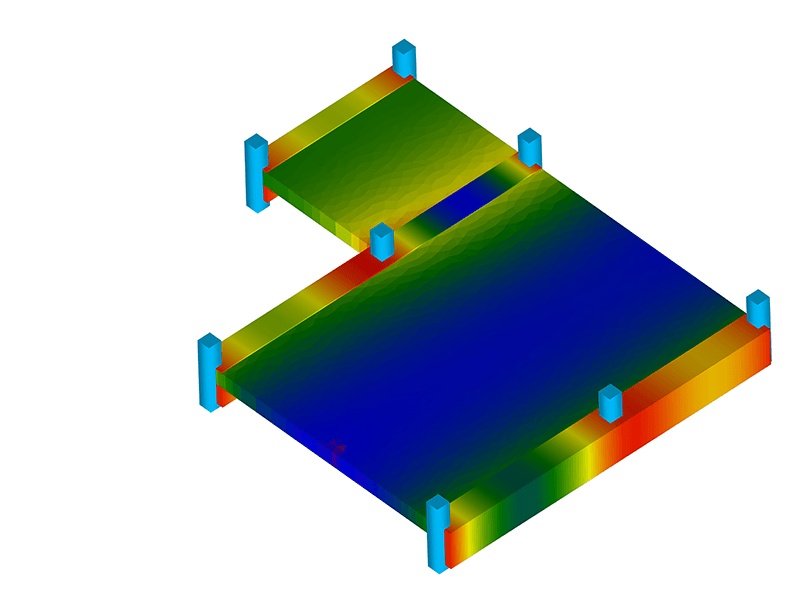

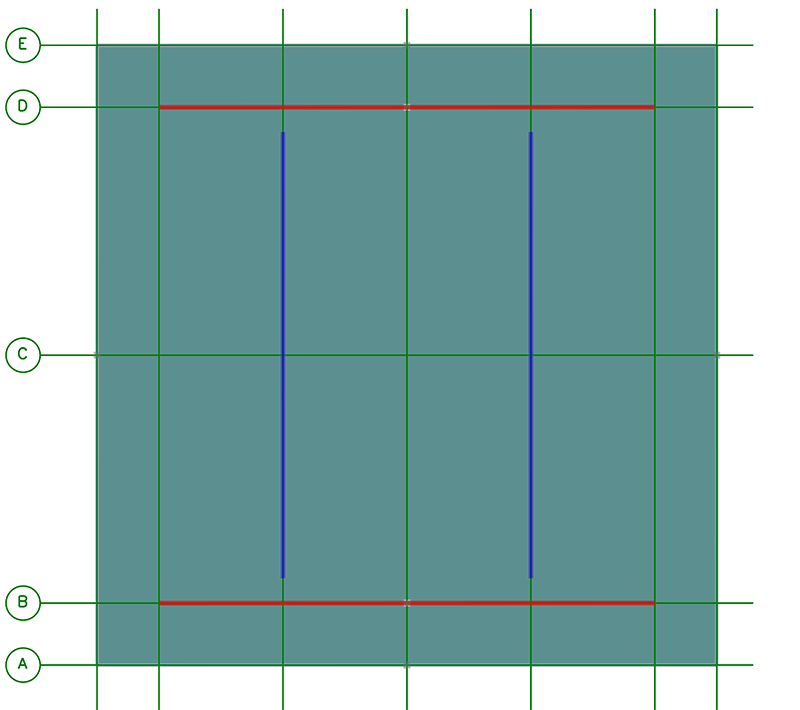

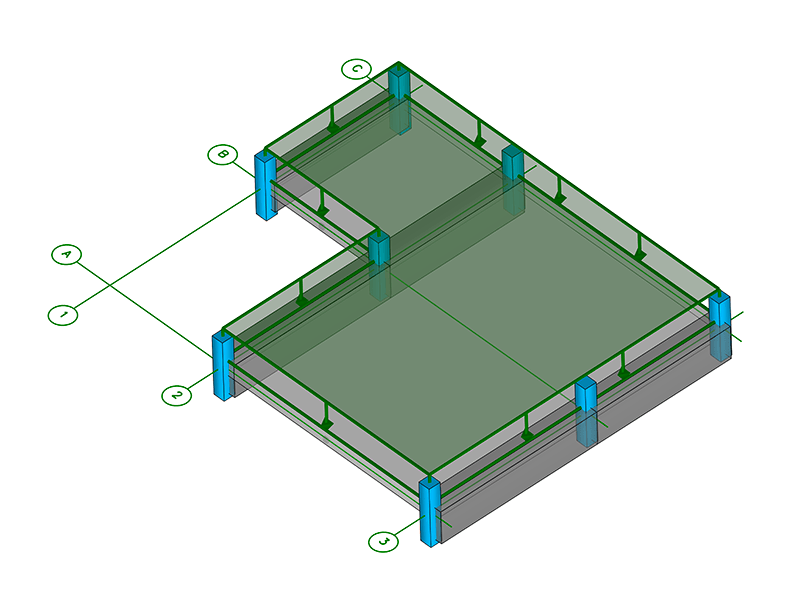

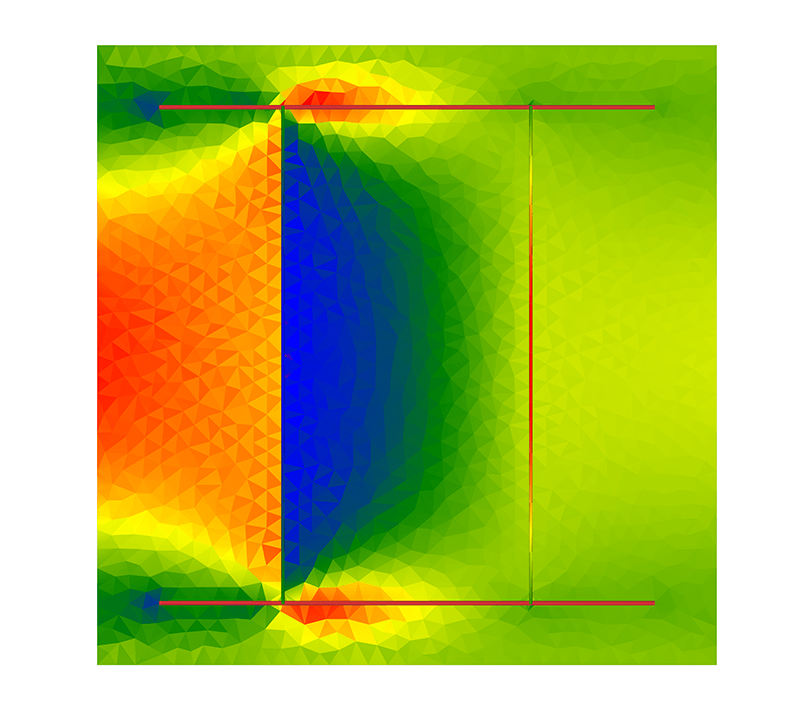

Plate Bending and Slab Projects
VisualPlate helps engineers solve metal plate bending and concrete slab problems for models with complex or irregular geometries. VisualPlate has built in support for IBC 2006/2009 and ACI 318-08 code checks. Von-Mises stress criteria checks are performed for metal plates.
VisualPlate
Product Features
Download the Trial
Pricing
-

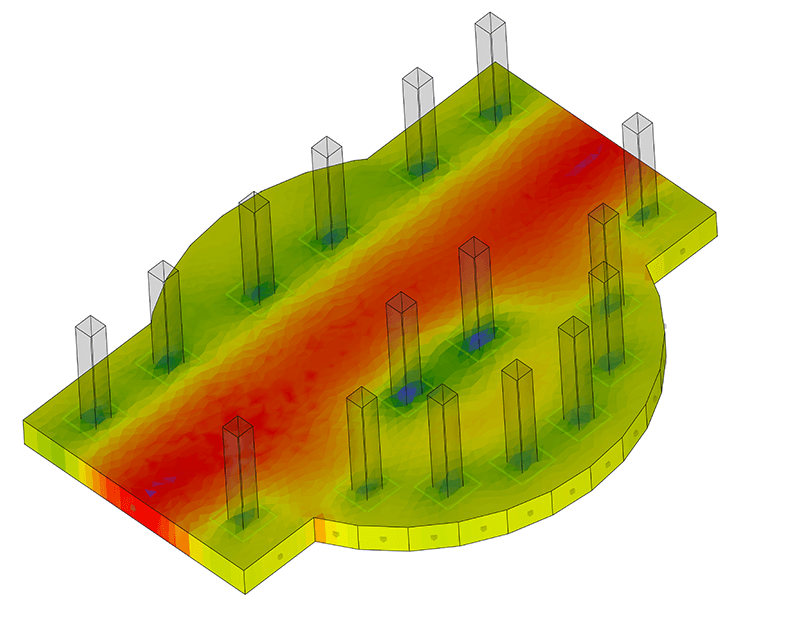

Foundation Design
VisualFoundation automates much of the work involved in designing everything from simple spread footings to complex mat foundations. Footing demand/capacity ratios are performed to ensure that your foundation meets the requirements of the 2009 IBC and ACI 318-08.
VisualFoundation
Product Features
Download the Trial
Pricing
-
Shear Wall Systems
VisualShearWall makes modeling and analysis of complex shear wall systems easy! Model and analyze Flexible, Rigid, or Semi-Rigid diaphragms in Wood, Steel, Concrete, and Masonry. Automated, customizable load combinations for IBC and ASCE 7 with independent Wind & Seismic load cases.
VisualShearWall
Product Features
Download the Trial
Pricing
-
Retaining Wall Design
QuickRWall will get you out of the 'black box' and into high-quality retaining wall design in short order. The reports are excellent with full equations and intermediate data readily available for complete checking. QuickRWall is very graphical, extremely easy to use, fast, and robust.
QuickRWall
Product Features
Download the Trial
Pricing
-
Masonry Wall Design
QuickMasonry is a standalone masonry tool to manage multiple structural components within a single project file. The Project Management tool offers the ability to design a series of lintels and walls for a single building in one project file, following the latest masonry design specifications.
QuickMasonry
Product Features
Download the Trial
Pricing
-
Concrete Shear Wall Design
QuickConcreteWall specializes in reinforced concrete shear walls and is an excellent tool for detailing concrete walls subject to in-plane forces. Complex ACI interaction checks are performed instantaneously as the engineer tweaks design parameters and views the results. Complete rebar detailing is provided in a productivity-quick format.
QuickConcreteWall
Product Features
Download the Trial
Pricing
-
Spread Footing Design
QuickFooting is a standalone footing design tool which helps engineers check or design reinforced concrete footings. QuickFooting performs stability and strength checks with support for IBC, CBC or custom load combinations and provides transparent reports showing all checks and code references along with detailed design sketches.
QuickFooting
Product Features
Download the Trial
Pricing
